How do I see how many objects an item/spare part is linked to?

You can link a spare part to an object in the system. This association is visible on the the Item card, or through a selection.

You can check this in two different ways:

1. Via the item/spare part card
2. Via a selection

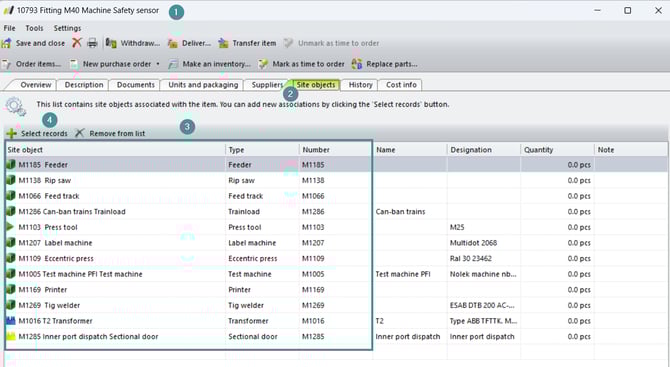

Via the item/spare part card

1. Open an item
2. Go to tab Site objects
3. This is the site objects that is linked to the item/spare part
4. If you want to add site objects you press "Select records" and if you want to remove you press "Remove from list"



relation 1



Via a selection

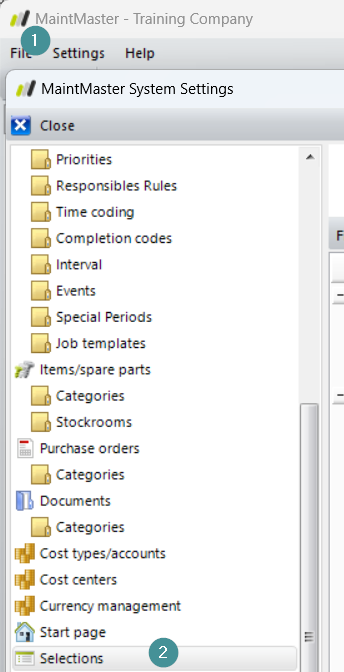

1. Go to settings - system settings
2. Go to selections

selection 1

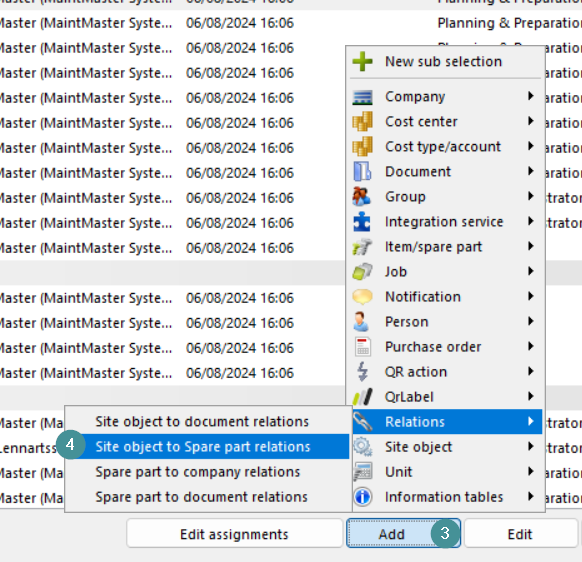

3. Press Add
4. Choose Relations - Site object to spare part relations

selection 2

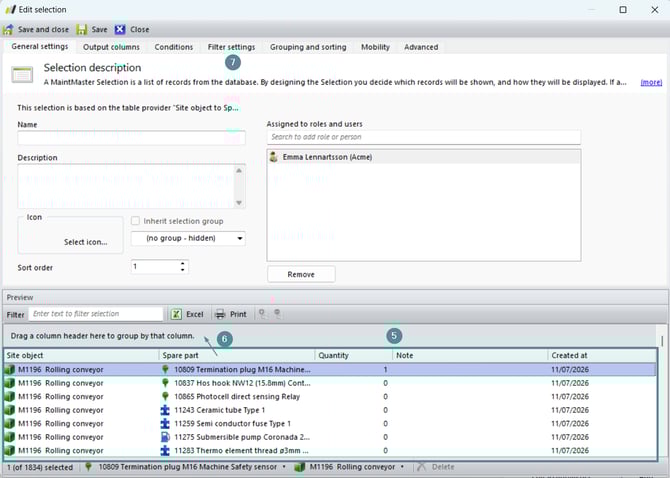

5. Now you see all relations between site objects and items/spare parts
6. If you drag the column spare part to the field you easier see all the site objects for each item/spare part.(If you want that column to stay you can go by tab Grouping and sorting and use grouping for column Spare part)
7. You can also add a filter setting to the selection, if you want to search for the site objects easier in the selection



selection 3

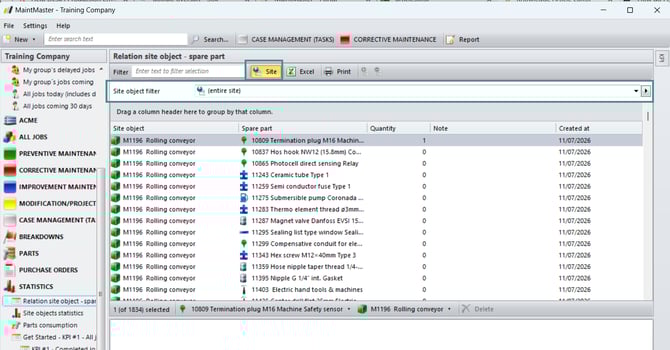

In that case you can find the site object in the list and then see all the items/spare parts

selection 4
