How do I create a new property?

Properties/datafields contains data you can display in selections/lists/reports. You can create your own, deciding what information is important for you.

If you need to add searchable information to specific cards and use that information for statistics or in selections, you can create custom fields, properties, on any card. These properties can contain various data formats, such as value lists, dates, persons, objects, and more. In this example you will create a property for classifying machines. The property will contain a value-list/drop-down with the values A, B and C.



This is how to create a new property:

1. Open "Settings -> "System settings"
2. Go to "Site objects" and "Categories"
3. Edit the category for production machines

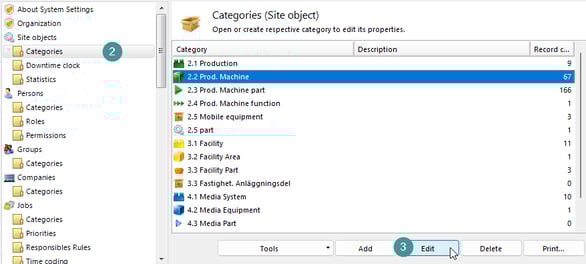

The picture shows where to find object categories in system settings.
4. Go to tab "Properties"
5. Click "Add"

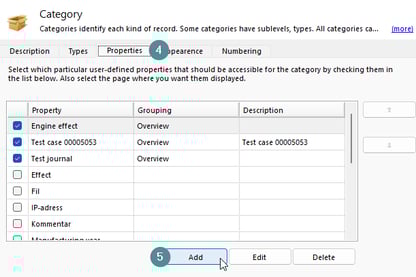

The picture shows how to add a property.

6. Name your new property Machine class
7. Set "Data Type" to" Value List" (As you can see, there are a number of datatypes to choose frm)
8. Click "Add"
9. Enter "A" as text
10. Click "OK"
11. Click "Add"
12. Enter "B" as text
13. Click "OK
14. Click "Add"
15. Enter "C" as text
16. Click "OK" twice

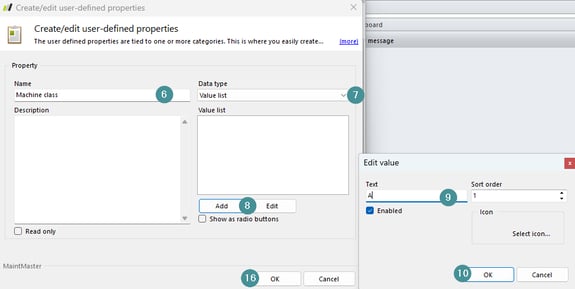

The picture shows how to edit a property.
17. Close "System Settings"
18. Open a production machine card
19. Choose a value for your machine in your new property

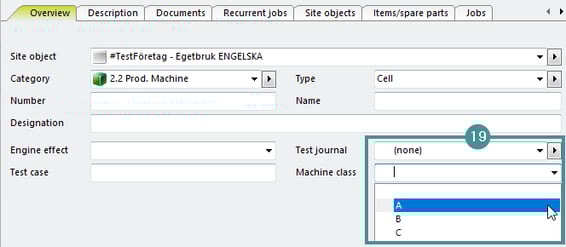

The picture shows how to choose a value from a value list.
